Richard Kopchock III

IRL Pokédex

A real-life Pokédex that classifies all 151 Gen 1 Pokémon using fine-tuned CNN and TTS models.

Overview

  • Classifies all 151 Gen 1 Pokémon, 94.71% validation accuracy
  • EfficientNet-B0 trained on ~11k scraped images of Pokémon cards, anime, and merch
  • Pokédex voice (fine-tuned XTTS) reads entries out aloud
  • Exported to ONNX for deployment on a Pi Zero 2 W

App

Runs as a Python app on a Pi 5 with a camera, LCD, speaker, and GPIO buttons. Point it at a Pokémon, press a button, and it identifies it and reads the Pokédex entry aloud. Also includes a browseable entry list with sprites and stats for all 151 original Pokémon.

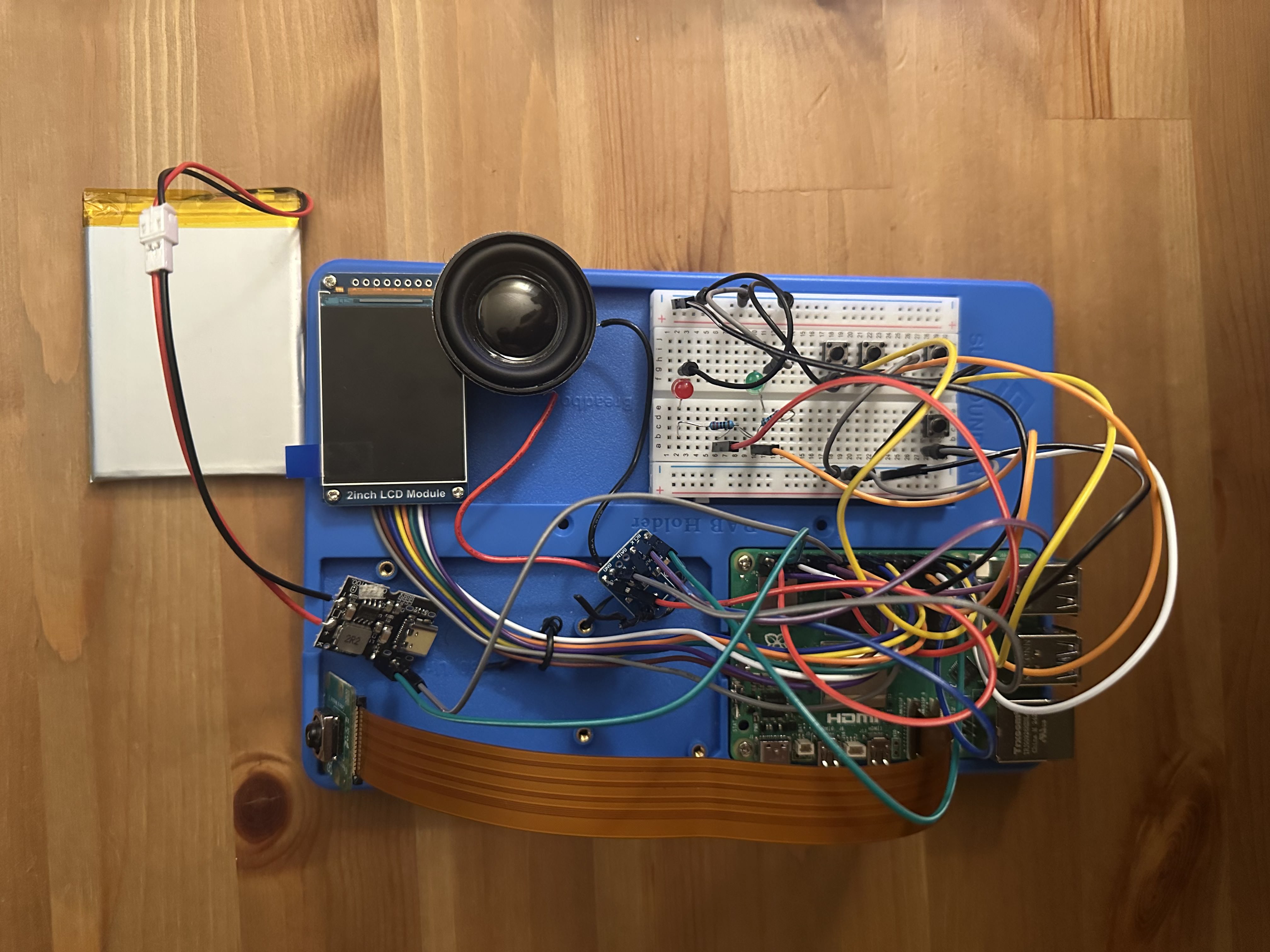

Breadboarded Raspberry Pi Pokédex with camera, amp, and buttons wired in

Dataset + classification

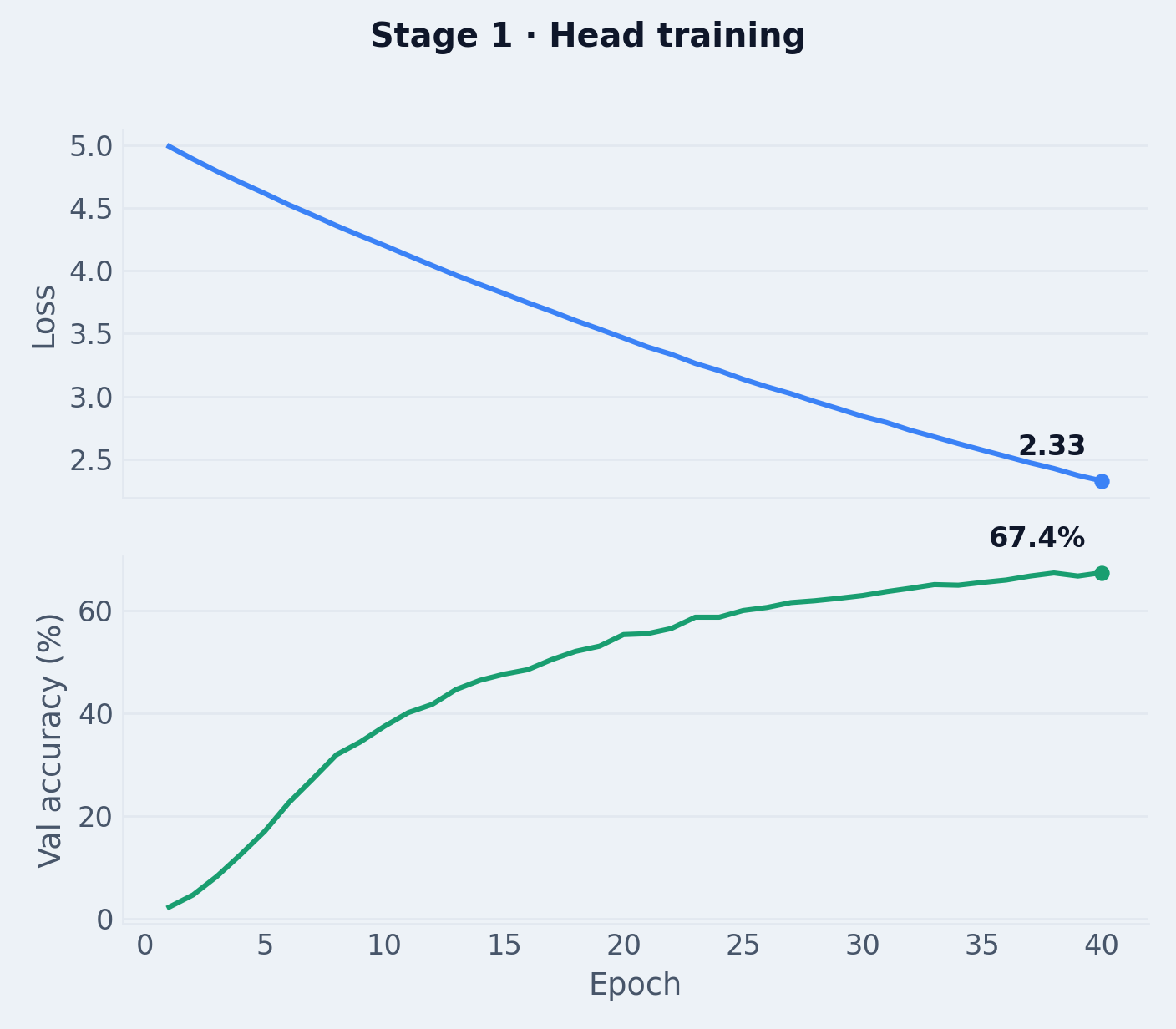

Stage 1 head training: loss falls from 4.99 to 2.33 while validation accuracy climbs from 2% to 67.4% over 40 epochs
Stage 1: the classification head alone, ending at 67.4% validation accuracy.

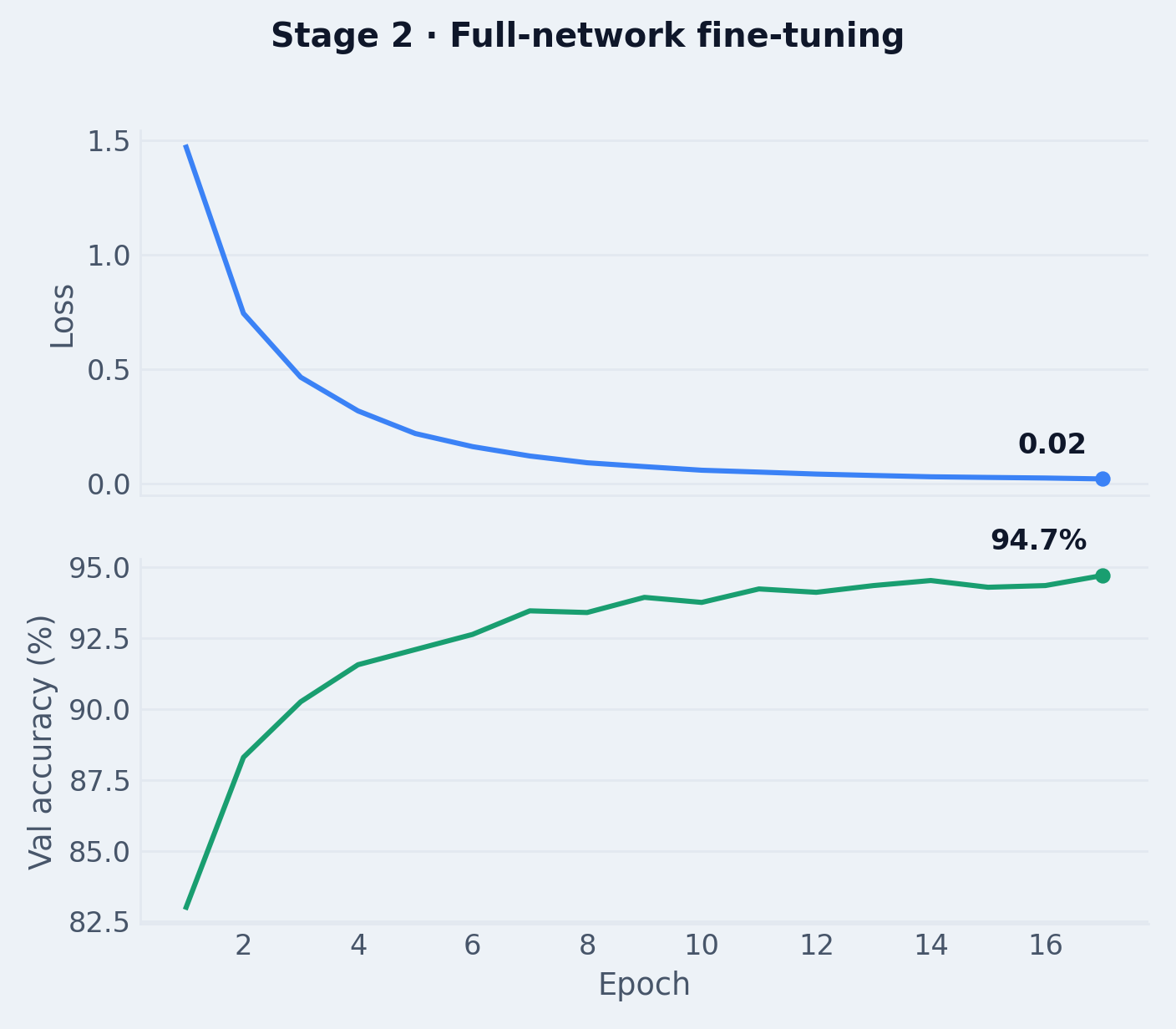

Stage 2 fine-tuning: loss falls from 1.47 to 0.02 while validation accuracy climbs from 83% to 94.7% over 17 epochs
Stage 2: unfreezing the full network lifts validation accuracy to 94.71%.

Training images were scraped from online searches: cards, anime screenshots, and merch like plushes and figurines rather than just game sprites. After deduplication the dataset came to about 11,000 images across 151 classes. EfficientNet-B0 was trained in two stages, first the classification head then the full network, going from 67% to 94.71% accuracy. The final model was exported to ONNX with class labels embedded.

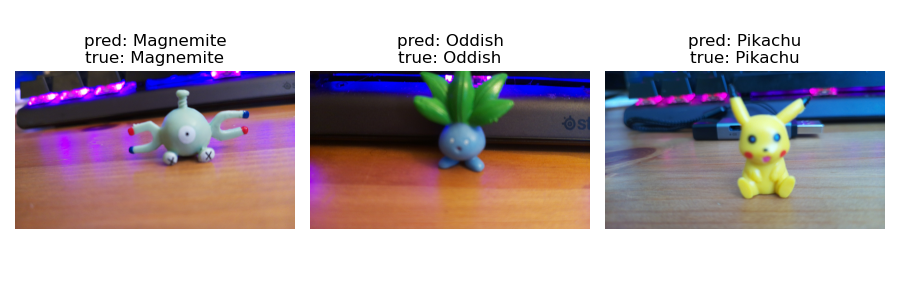

On-device prediction output
On-device prediction output.

Text-to-speech

XTTS v2.0 was fine-tuned on audio scraped from the Pokémon show to create a custom Pokédex voice. Flavor text for each species was then pulled from PokeAPI and paired with pronunciation data from a fan wiki so that names get rewritten phonetically before inference. The result is a spoken Pokédex entry for every Gen 1 Pokémon.
